Fiber Glass Insulation

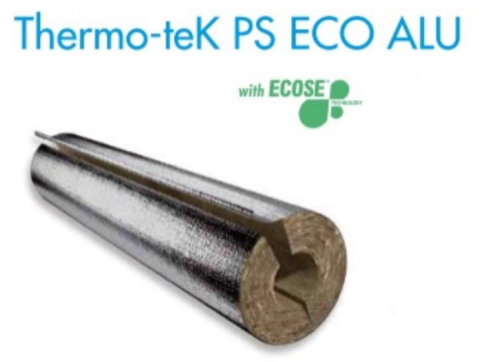

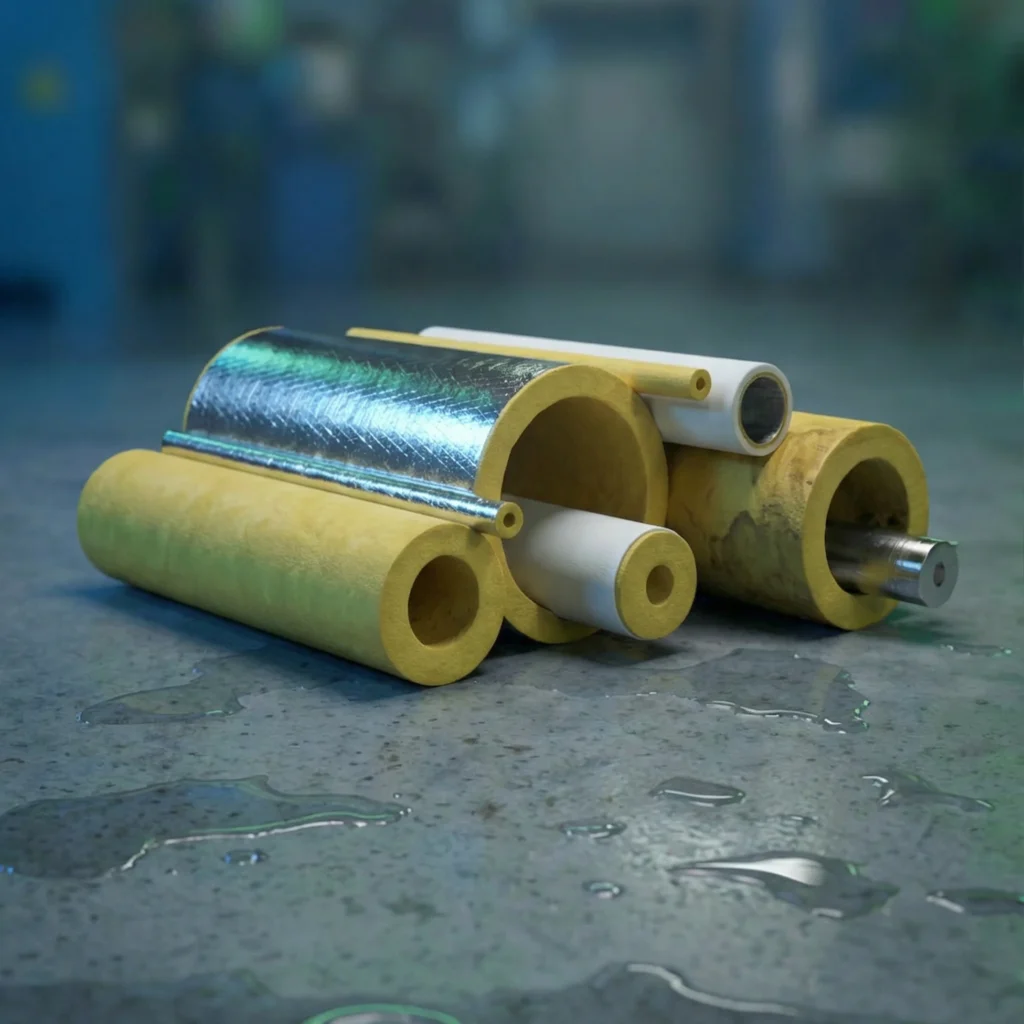

We provide a wide range of glass wool-based pre-formed pipe sections; designed specifically for the insulation of HVAC pipework.:

Faced with FSK – Pipe sections, with a factory-applied reinforced Aluminum foil covering (FSK) incorporating an overlap (self-adhesive in some cases). This helps to provide effective vapor control.

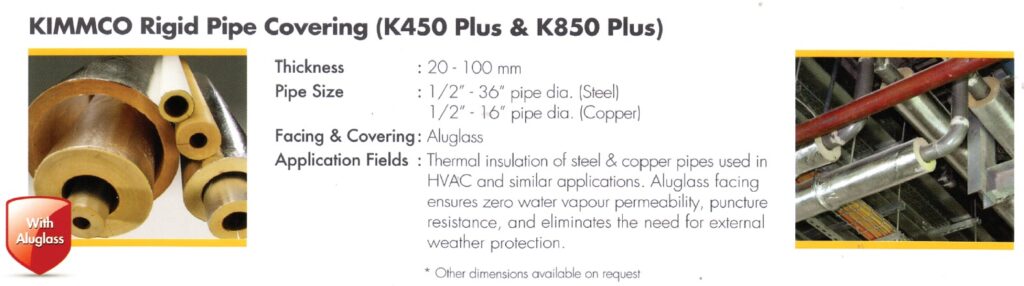

Faced with Aluglass for improved puncture resistance, mechanical strength, and vapor control
Unfaced pipe sections, supplied without factory-applied outer covering and therefore suitable for use with or without site applied finishes on pipes operating at ambient temperatures and above.

The use of our product’s pipe sections contributes to thermal comfort and savings, prevents condensation problems, and improves acoustic performance.

Tysseer trading

Our Suppliers

KNAUF
Origin: Turkey

Acoustic insulation, Duct wrap, Duct liner, Façade slap, Mineral wool, duct board insulation, Duct liner slap.

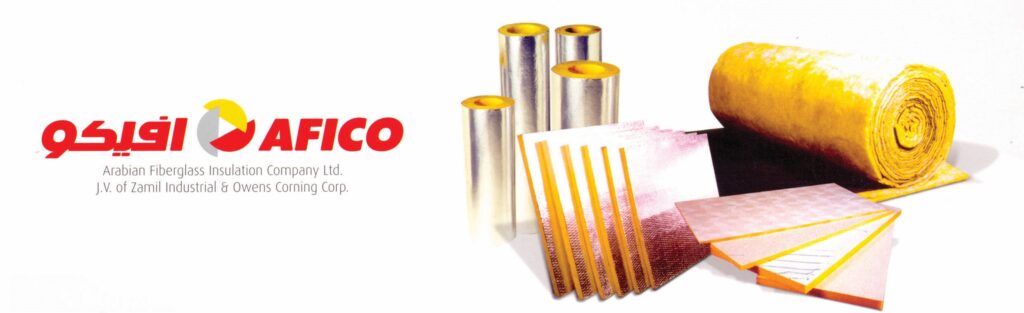

Afico Fiber Glass Insulation
Origin: Saudi Arabia
Duct Pipe Insulation Rigid PI
Duct Building Roll FDU
Duct Liner Insulation DL

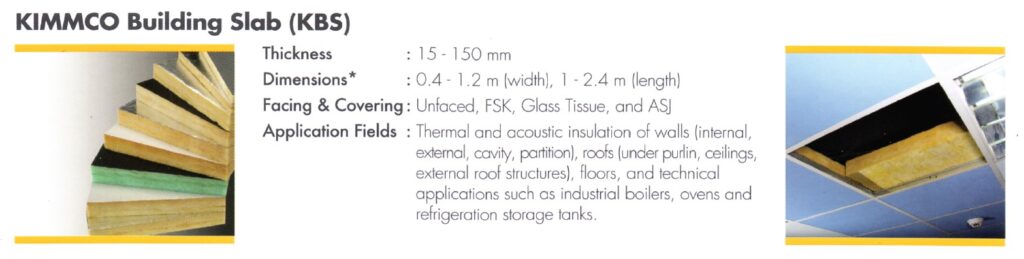

Kimmco IsOver
Origin: Kuwait

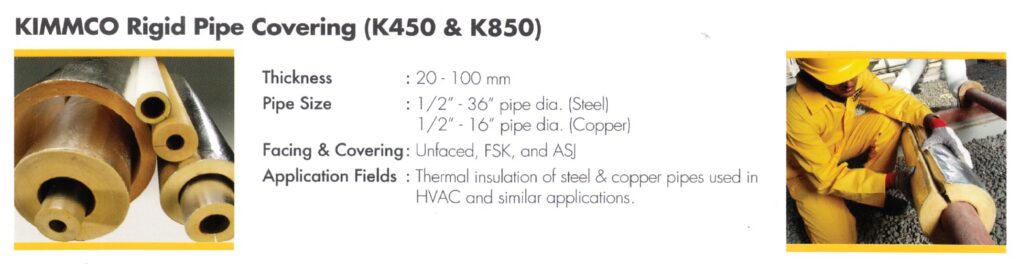

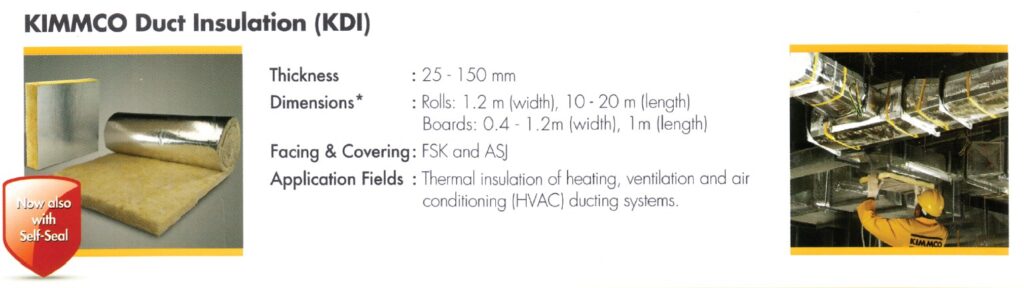

Duct Insulation KDI
Duct Liner KCL

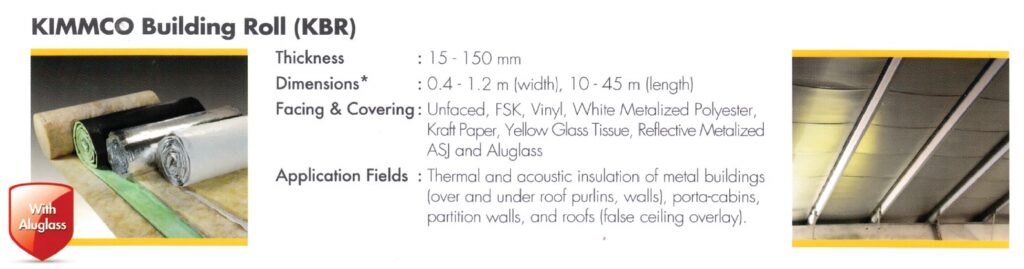

Duct Building Roll KBR

Tysseer trading

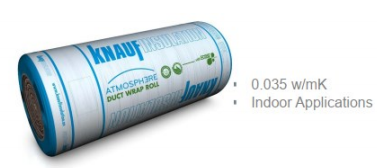

Duct Wrap Roll

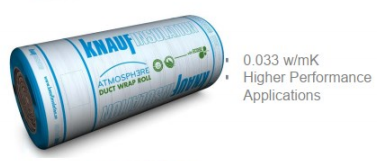

Duct Wrap Roll Ultimate

Duct Wrap Slab

Duct Wrap Roll is used as external insulation on commercial or residential heating or air conditioning ducts. It is suitable for the exterior of rectangular or round sheet metal ducts and spaces or surfaces where temperature and condensation must be controlled.

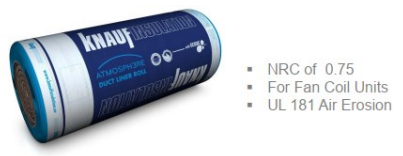

Duct Liner Roll

Duct Liner Roll Ultimate

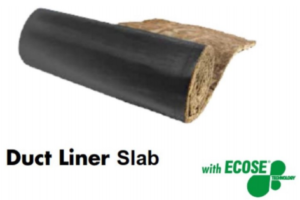

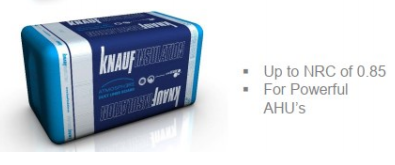

Duct Liner Slab

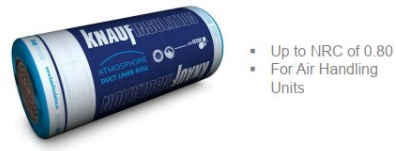

Duct Liner Roll is a flexible, mat-faced insulation bonded with ECOSE® Technology. It is faced with a tightly bonded mat to give the airstream a smooth, tough surface, resisting damage during installation and operation.

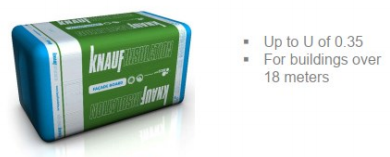

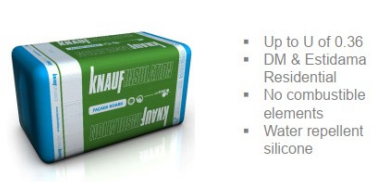

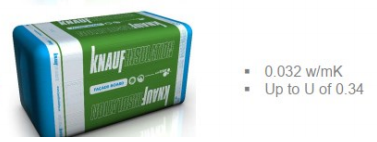

Facade Slab 35

Facade Slab 33 Super

Facade Slab 32 Ultimate

A non-combustible glass mineral wool for use as an insulated, underlining solution in semi exposed environments such as those associated with open sided car parks. The black facing provides an attractive finish.

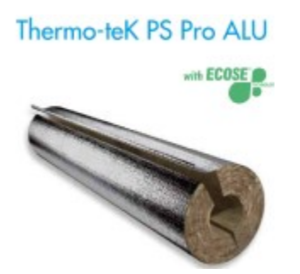

Certified fire resistance up to El120 for wall/ ceiling penetrations
2-in-1 solution – optimal thermal & fire performance
Premium thermal conductivity
Longitudinal self-adhesive closure
ECOSE® Technology

No additional cladding needed for indoor
applications
Good thermal conductivity
Longitudinal self-adhesive closure
ECOSE® Technology

Fast and easy installation of additional cladding
Minimum tolerances of thicknesses and diameters
VECOSE® Technology

Lightweight and very flexible solution
product for different applications, forms, diameters and sizes
Tear-resistant, sturdy aluminum lamination Easy to handle, cut and install around different shapes
ECOSE® Technology

Lightweight & Economic solution
Tear-resistant, sturdy aluminum lamination
One (universal) product for different applications, forms, diameters and sizes
Easy to handle, cut and install around different shapes
ECOSE® Technology

Very good thermal conductivity
Tear-resistant, sturdy aluminum lamination
install around different shapes
ECOSE® Technology

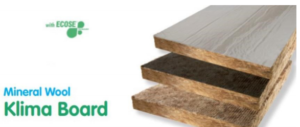

KI KlimaBoard is specially designed for duct board insulation to provide maximum insulation
performance and to prevent heating and cooling losses within the air conditioner distribution network.
With low thermal conductivity coefficient. Thermal Conductivity Coefficient: l D=0,032 W/m.K

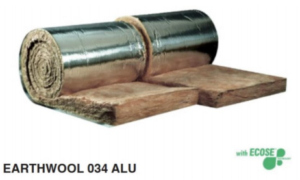

Earthwool 034 Alu, produced with revolutionary ECOSE Technology, is new generation light, long-lasting, environmentally friendly, aluminum folio faced mineral wool based loft roll. Earthwool 034 Alu, can be also produced with one side ecose veil according to purpose of use or required performance.

Atmosphere™ Duct Liner Slab is a flexible, mat-faced insulation bonded with ECOSE® Technology. It is faced with a tightly bonded mat to give the airstream a smooth, tough surface, resisting damage during installation and operation.

Tysseer trading

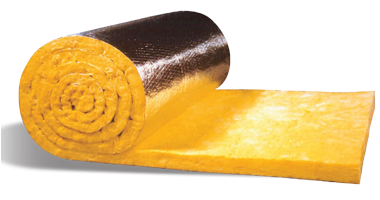

FDW (Faced Duct Wrap Insulation)

Faced Duct Wrap Insulation is highly efficient, flexible blanket insulation composed of fine, stable, and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire retardant thermosetting and heat resistant resin. It is free from coarse fibers and is shot due to its mineral composition.

Faced Duct Wrap Insulation is intended for use in commercial, institutional, industrial, and residential construction as thermal and acoustical insulation of heating, air-conditioning, dual temperature ducts, and air handling equipment. The use of Faced Duct Wrap Insulation helps prevent condensation when properly applied to air-conditioning ductwork.
The semi-rigid wrap with densities from 16 to 56 kg/m³ (1.0 – 3.5 lb/ft³) are flexible insulation rolls for application over irregularly-shaped surfaces where rigidity properties are desired.

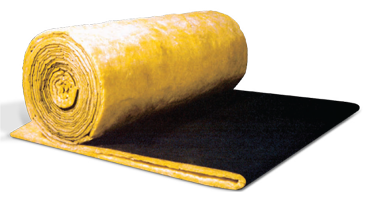

Duct Liner is a highly efficient, semi-rigid insulation of fine, stable, and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire retardant thermosetting and heat resistant resin. It is free from coarse fibers and is shot due to its mineral composition.

Duct Liner is intended for use in commercial, institutional, industrial, and residential construction as thermal and acoustical insulation of heating air-conditioning and interior of dual temperature ductwork, air handling equipment, and plenums operating at air-velocities up to 30 m/s (6000 FPM) and temperatures up to 121°C(250°F).

Also used as an efficient sound absorption treatment of walls and ceilings, acoustic enclosures, generator rooms, studios, curtain walls, auditoriums, conference rooms, theaters, and others.

DL (Duct Liner)

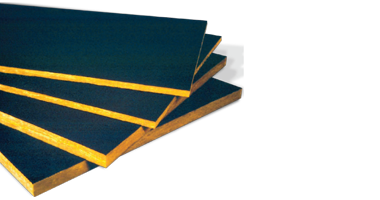

QLB (Quit Liner Board)

Quiet Liner Board is highly efficient resilient fiber insulation composed of fine, stable, and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire-retardant thermosetting and heat resistant resin. It is free from coarse fiber and shot due to its mineral composition.

Quiet Liner Board is intended for use in commercial, institutional, industrial, and residential construction as thermal and acoustical insulation of heating air-conditioning and interior of dual temperature ductwork, air handling equipment, and plenums operating at air-velocities up to 30 m/s (6000 FPM) and temperatures up to 260°C(500°F).

Also used as an efficient sound absorption treatment of walls and ceilings, acoustic enclosures, generator rooms, studios, curtain walls, auditoriums, conference rooms, theaters, and others.

Mechanical Board Insulation is composed of fine, stable, and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire-retardant thermosetting and heat resistant resin and formed into semi-rigid rectangular boards or slabs. It is free from coarse fibers and is shot due to its mineral composition.

Mechanical Board Insulation is a semi-rigid and rigid glass fiber board intended for use in commercial, institutional, industrial, and residential construction as thermal and acoustical insulation for interior walls and partitions, cavity wall construction, floor, precast structures, and prefabricated houses and exterior of ductwork and mechanical, air handling equipment, vessels and tanks where abuse resistance is required.
The semi-rigid boards with densities from 24 – 32 kg/m³ (1.5 – 2.0 lb/ft³) are flexible insulation boards for application over irregularly shaped surfaces where board-like properties are desired. The rigid boards with densities from 48 – 96 kg/m³ (3.0 – 6.0 lb/ft³) are even more rigid for strength, abuse resistance, and a flat appearance.

MBD (Mechanical Board Insulation)

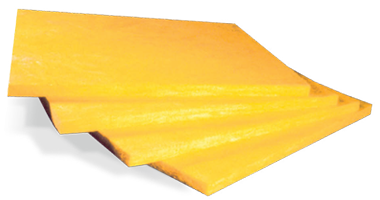

BD (Board Insulation)

Board Insulation is composed of fine, stable, and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire-retardant thermosetting and heat resistant resin and formed into semi-rigid rectangular boards or slabs. It is free from coarse fibers and is shot due to its mineral composition.

AFICO Board Insulation is a semi-rigid and rigid glass fiber board intended for use in commercial, institutional, industrial, and residential construction as thermal and acoustical insulation for exterior walls, interior walls and partitions, cavity wall construction, floor, precast structures, and prefabricated houses. The semi-rigid boards with densities from 24 – 32 kg/m³ (1.5 – 2.0 lb/ft³) are flexible insulation boards for application over irregularly shaped surfaces where board-like properties are desired. The rigid boards with densities from 48 – 96 kg/m³ (3.0 – 6.0 lb/ft³) are even more rigid for strength, abuse resistance, and a flat appearance.

Blanket Insulation is a highly efficient, lightweight, strong, resilient, and easy-to-handle flexible blanket insulation composed of fine, stable, and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire retardant thermosetting and heat resistant resin. It is free from coarse fiber and shot due to its mineral composition.

Blanket Insulation for use in commercial, institutional, industrial, agricultural, and residential construction as thermal and acoustical insulation for the interior, exterior and cavity walls applications, partitions, prefabricated houses, poultry farms, ceilings, and as back loading of existing ceiling systems The semi-rigid blankets with densities from 12 – 20 kg/m³ (0.75 – 1.25 lb/ft³) are flexible insulation rolls for application over irregularly shaped surfaces where rigidity properties are desired

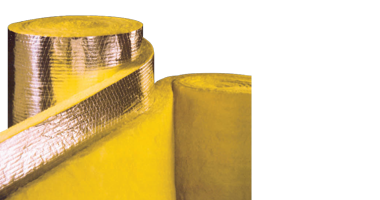

BKT (Blanket Insulation)

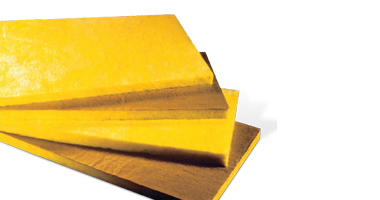

CWI (RESIDENTIAL CAVITY WALL INSULATION)

Cavity Wall Insulation is composed of fine, stable, and uniformly textured inorganic glass fibers bonded together by non-water soluble and fire-retardant thermosetting and heat resistant resin and formed into semi-rigid non-combustible and moisture repellent rectangular boards or slabs. It is free from coarse fibers and is shot due to its mineral composition.

Cavity Wall Insulation is a semi-rigid board intended for use in commercial, institutional, industrial, agricultural, and residential construction as thermal and acoustical insulation for the interior, exterior, and partial or fully cavity applications as well as in poultry farms precast structures prefabricated houses and new residential villa construction.

Roof Deck Board Insulation is composed of textured inorganic glass fibers bonded together by non-water soluble and fire-retardant thermosetting and heat resistant resin and formed into rectangular rigid boards of heavy density.

Board for thermal of structural roof decks. It is designed for use over flat or low slopping nailable, non-nailable, and metal roof decks. Its functions are:

To provide resistance to heat flow through the roof systems.
To provide a resilient base for the membrane roofing.
To reduce the effects of deck movement forces on membrane roofing.
Good appearance, strength & abuse resistance.

Roof Deck Board Insulation is a rigid glass-fiberboard designed specifically for use with a loose-laid, ballasted single-ply roof membrane system, as thermal insulation to reduce heat gain or loss through the roof system. In addition to providing resistance to heat flow through the roof system, it also conforms to minor deck irregularities, reduces membrane roofing, and provides a dimensionally stable, flat surface for membrane roofing applications.

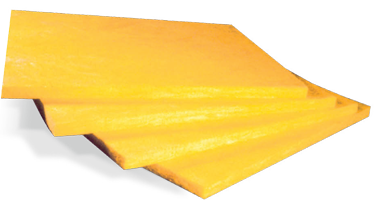

RI/RD (ROOF DECK BOARD INSULATION)

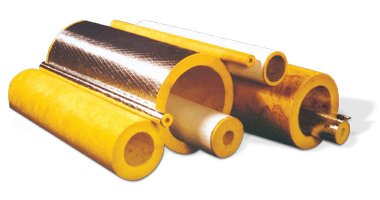

(PI) HEAVY DENSITY PIPE INSULATION

Heavy Density Pipe Insulation is a heavy density, preformed insulation composed of fine, stable, and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire-retardant thermosetting and heat resistant resin. It is free from coarse fibers and shot due to its mineral compositions, molded in one-piece sections, and made with a single seam. Heavy Density Pipe Insulation is damage resistant, easy to handle, and spread open to receive the pipe and snaps closed after placement.

Heavy Density Pipe Insulation is intended for use in commercial, institutional, industrial, and residential construction and in power and process plants as thermal and acoustic insulation for hot or cold, concealed or exposed steel, copper, and plastic piping where temperatures are between -18°C and +450°C (0 to 850°F).

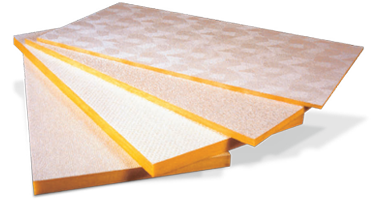

Acoustical Ceiling Panels are composed of fine, stable, and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire-retardant thermosetting and fire resistant resin, They are free from coarse fibers and shot due to their mineral composition.

Acoustical Ceiling Panels are intended for use in commercial, institutional, and residential construction as an acoustical and thermal ceiling panels for suspended ceiling systems. This decorative ceiling panel will specifically meet the designer’s need for acoustic control and has a good aesthetic appearance and high thermal performance, especially in open-plan offices, board rooms, schools, stores, showrooms, and shopping centers.

(ACP) ACOUSTICAL CEILING PANELS

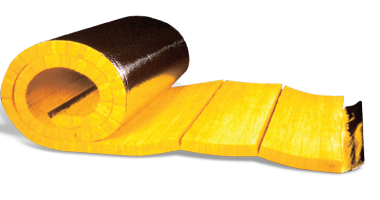

(PWI) PIPE WRAP INSULATION

Pipe Wrap Insulation Consists of a roll of semi-rigid all-purpose fiberglass board insulation composed of fine, stable, and uniformly textured inorganic glass fibers bonded together by a non-water soluble and fire-retardant thermosetting and heat resistant resin. It is free from coarse fibers and is shot due to its mineral composition.

Pipe Wrap Insulation is designed for use in industrial and commercial systems as thermal and acoustical insulation for large diameter pipes, round ducts, and oval ducts at 250mm (10”) or greater. It can be used to insulate pipe flanges, valves, groups of pipes, pipes with tracing lines, vessels, and tanks.

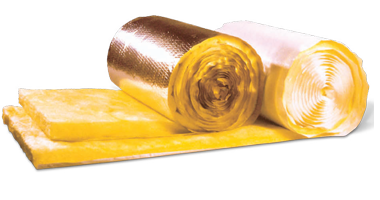

Pre-Engineered Metal Building Insulation (PEBI) is a highly efficient, lightweight, strong, resilient, and easy-to-handle flexible blanket insulation composed of line, stable, and uniformly textured inorganic glass fibers bonded together by non-water soluble and fire-retardant thermosetting and heat resistant resin. It is free from coarse fibers and is shot due to its mineral composition.

Pre-Engineered Metal Building Insulation is manufactured Specifically for use in the roof and side walls of commercial, industrial, residential, agricultural, and poultry farms metal building construction. This insulation greatly reduces heat gain or loss through the building envelope. It will not rot, disintegrate or slump.

(PEBI) METAL BUILDING INSULATION

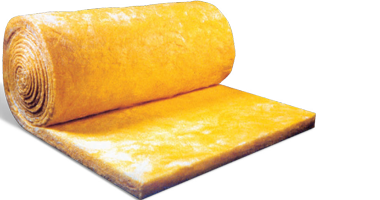

(TIW) THERMAL INSULATING WOOL INSULATION

Thermal Insulating Wool types I and II are composed of fine, stable, and uniformly textured inorganic glass fibers, off-white to light tan color, highly resilient, bonded together by non-water soluble, fire retardant special high temperature resistant thermosetting and heat resistant resin. They are free from coarse fibers and are shot due to their mineral composition. Type I is available in rolls, while type II comes in batt form only.

Afico TIW Insulation is intended for use in industrial and commercial applications as thermal and acoustical insulation for boilers, vessels, precipitators, ducts, chimney liners, chimney stacks, breechings, petrochemical storage tanks, water heaters, refrigerators, and freezers, ovens and cookers, washing machines, dryers and dishwasher machines and other household appliances, and types of industrial equipment operating at temperatures up to 540°C to 1000°F.

TIW Insulation is available in two types:
Type I is used in applications requiring a lightweight easy-to-handle and install insulation such as that used in panel systems, flexible wrap, industrial ovens, or over irregular surfaces.
Type II is especially suitable for use in metal mesh blankets, it may also be used in panel systems for precipitators, ducts, and breechings, where more compressive strength than that afforded by Type I is required.
This light weight makes TIW types I and II insulation easy to handle and install even when large size boards are used. There is no tendency for pinhole elongation- a frequent source of heat leaks in heavier products such as Rockwool/stone wool products. The virtual absence of shots, and their consistent fibrous glass composition, enable TIW TYPES I and II insulations to withstand the effects of high temperature and vibration without slumping, crumbling, or breaking.
