Hungers & Support System
A pipe support or pipe hanger is a designed element that transfers the load from a pipe to the supporting structures. The load includes the weight of the pipe proper, the content that the pipe carries, all the pipe fittings attached to the pipe, and the pipe covering such as insulation. The four main functions of pipe support are to anchor, guide, absorb shock, and support a specified load. Pipe supports used in high or low-temperature applications may contain insulation materials. The overall design configuration of a pipe support assembly is dependent on the loading and operating conditions.
Hangers and supports keep piping systems suspended in place and are a necessary part of any piping project. Pipe hangers generally carry the weight from above with supporting members in tension, while pipe supports generally carry the weight from below with supporting members in compression.
Tysseer trading
Our Suppliers
TST
Origin: India
Leader
Origin: India
Tembo Seven Star
Origin: India
Tysseer trading

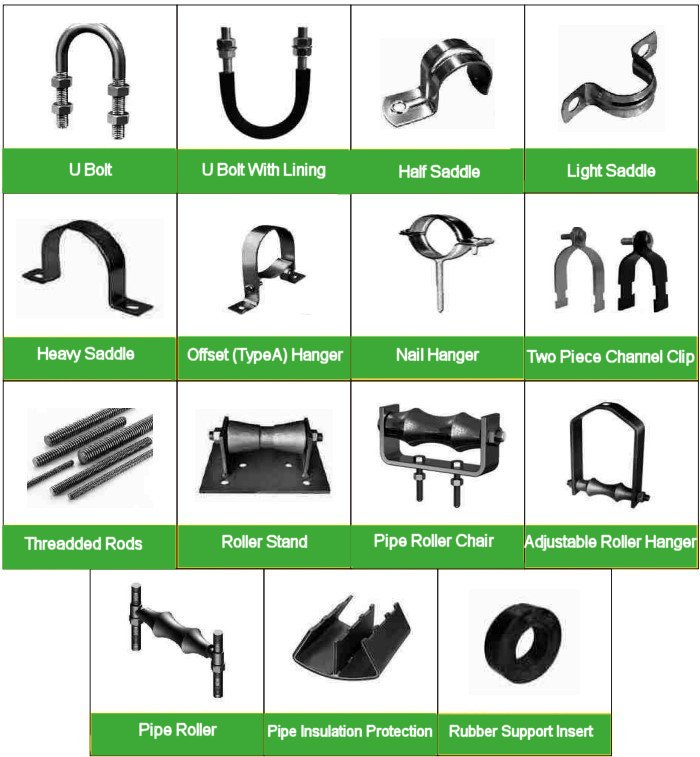

Rubber Support Insert

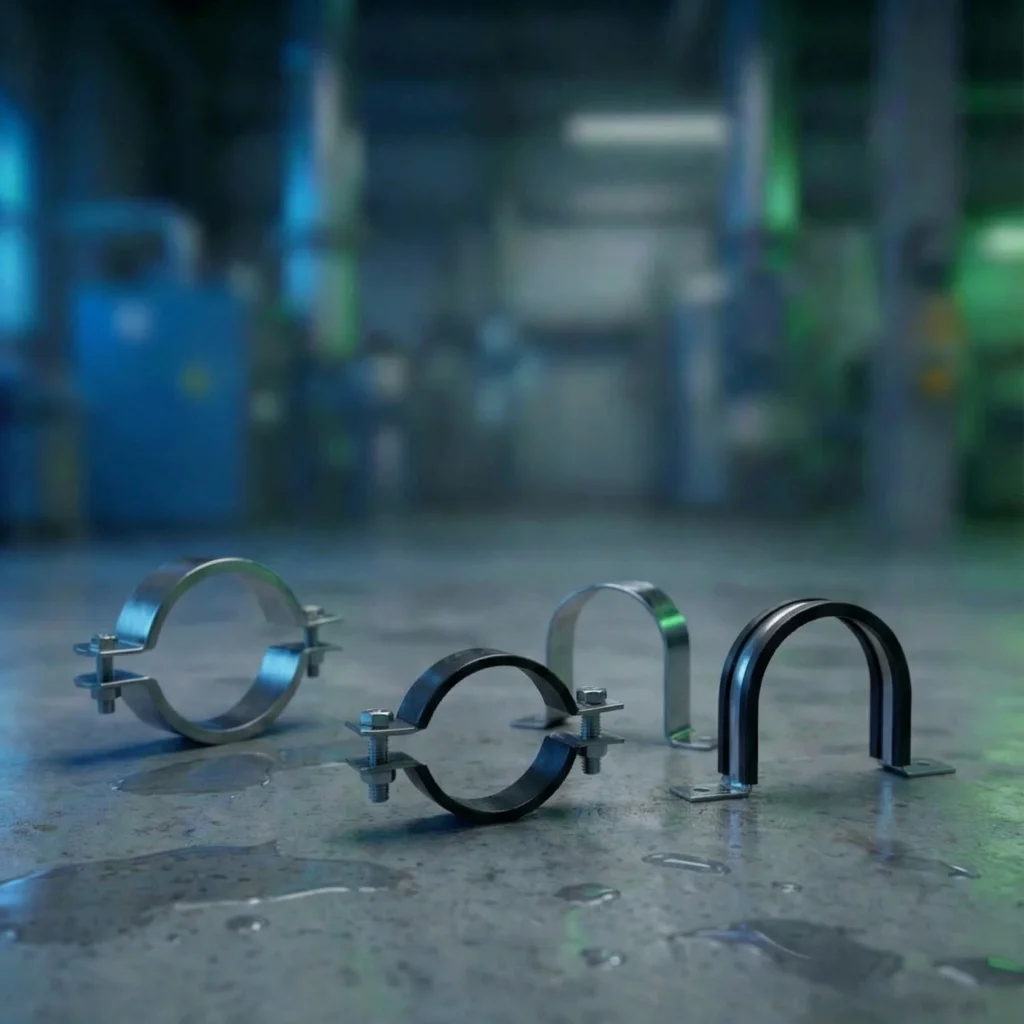

Saddle, U-Strap

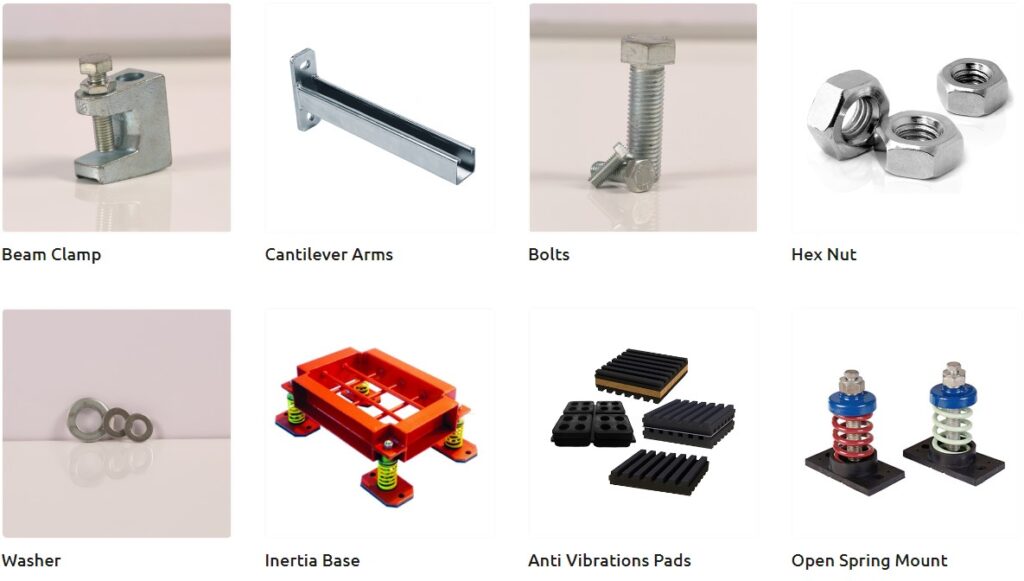

Anti-Vibration Pad
Sprinkler Pipe Hangers
Adjustable Clevis Hangers
Plain Split Clamps
U-Bolt
Threaded Rod
Hex Bolt , Nut & Washer
Tysseer trading

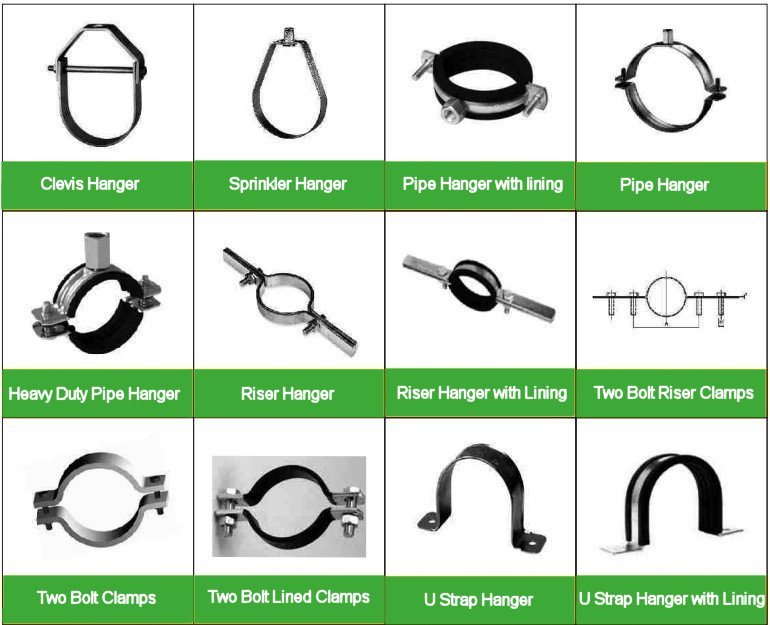

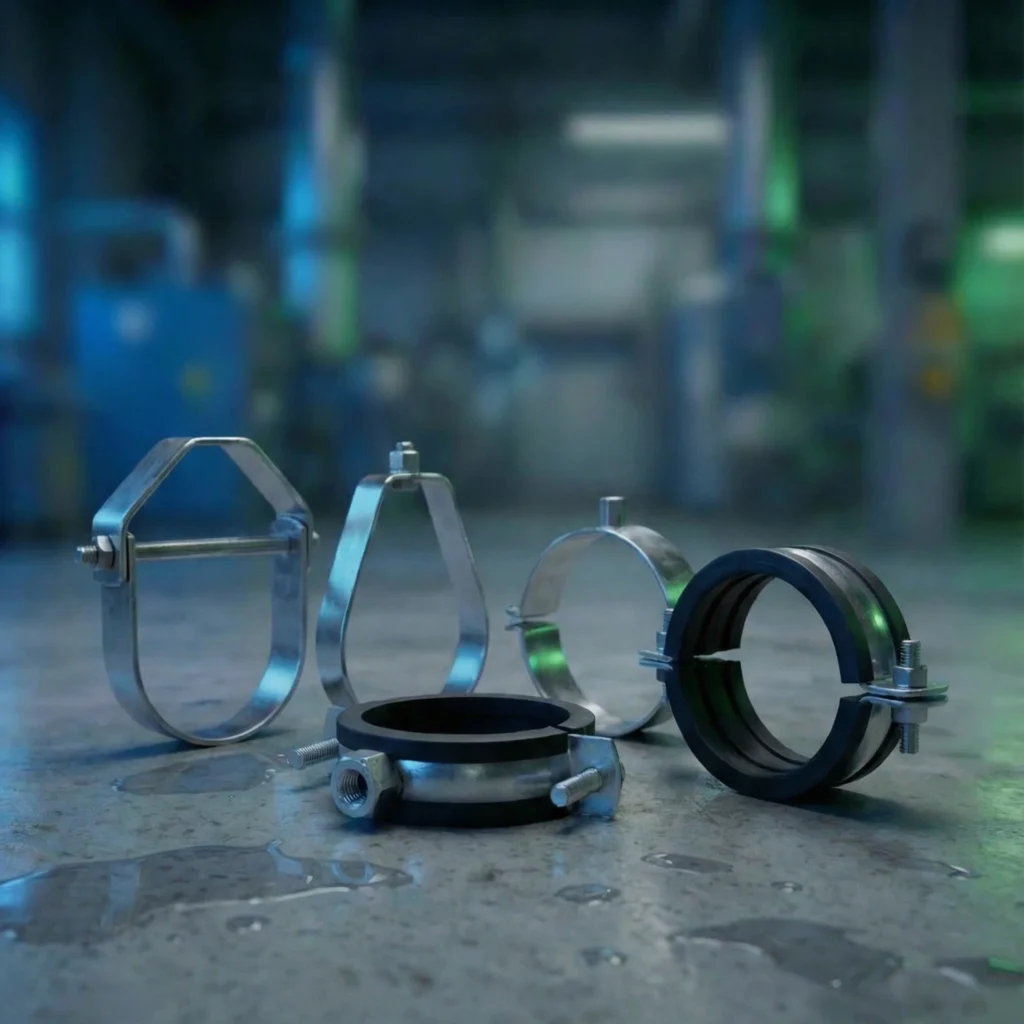

A CLEVIS HANGER provides for sizeable loads to be supported and for an elevation adjustment depending upon the pipe diameter. The lower nut adjusts the piping to the proper elevation and the upper nut, when locked into position, prevents loosening due to vibration.
Rubber Support Insert recommended using at the supporting points of insulated pipes to prevent crushing of insulation
A SPRINKLER HANGER is recommended to provide vertical support to non-insulated piping systems. By adjusting the position of the sprinkler nut on the hanger rod at the top of the hanger, pipe elevation can be altered.

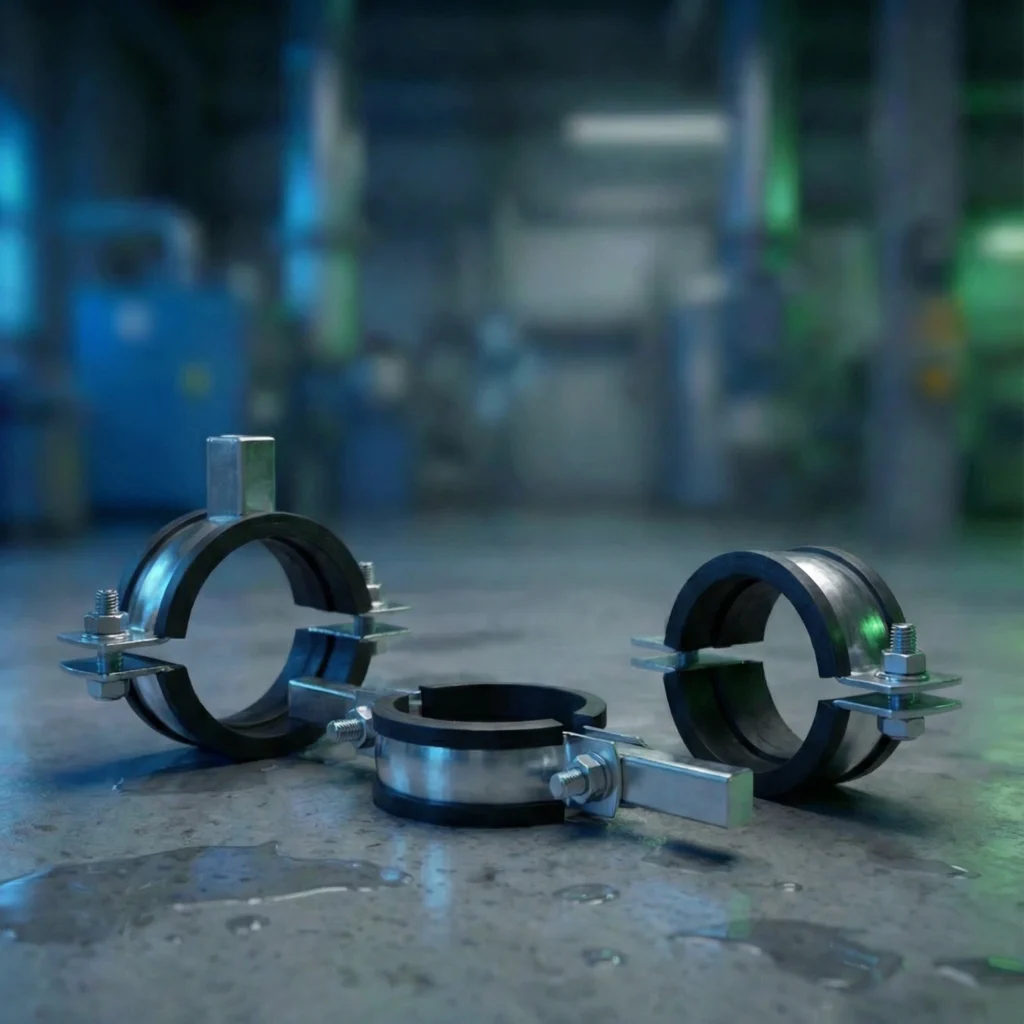

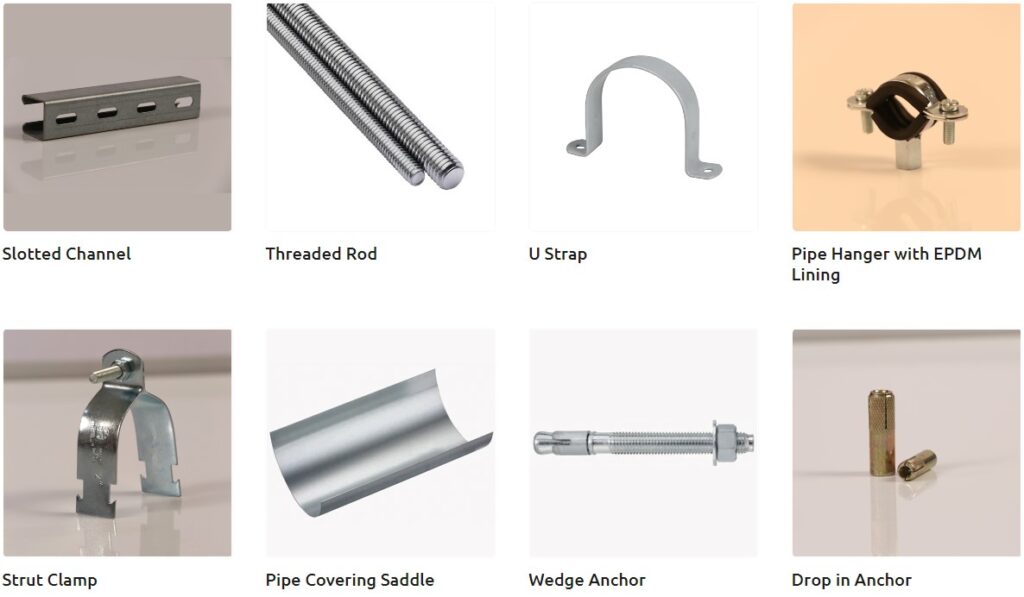

PIPE HANGER WITH EPDM LINING is recommended for non-insulated stationary pipelines in a horizontal position. It can be used for supporting pipes along the roof.
Pipe Roller Stand recommended supporting pipe in applications where horizontal movement, due to expansion and contraction, will occur.

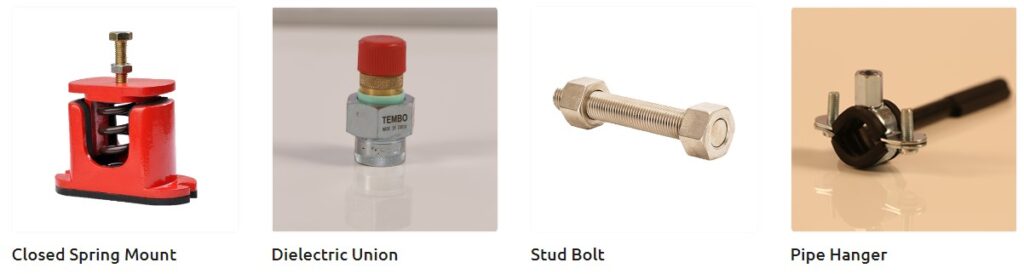

Spring Hangers are used to isolate suspended sources of both noise and vibration. Suspended mechanical equipment such as air handling units, FCU’s cabinet fans, piping, and ductwork in close proximity to rotating mechanical equipment are typical applications of model hangers.
An adjustable Roller Hanger is recommended for suspended pipes in applications where horizontal movement, due to expansion and contraction, will occur and vertical adjustment is necessary.
Spring Hangers are used to isolate suspended sources of both noise and vibration. Suspended mechanical equipment such as air handling units, FCU’s cabinet fans, piping, and ductwork in close proximity to rotating mechanical equipment are typical applications of model hangers.
Pipe Roller Chair recommended for support of pipe where longitudinal movement due to expansion and contraction may occur, but where no vertical adjustment is required.
